Report Manager UI
The below screenshot provides the UI of report Manager. The display area can be divided in 7 main areas:
- Report List Area: Provide the list of site-based reports in a tree structure.
- Search Area: Search the report via key word or report number.
- Parameters Area: Parameters / filters area, provide report data range.
- Execution: Click the View Report button when all parameters are set.
- Report Output Area: control the out put data or page setup for the printer.
- Report Display Area: Report result.
- Report Info Area: Provide report version, copyright info, execution time and footer information.
Parameter driven output
Reports are developed with multiple parameter options relevant to the output. In other words, users have the flexibility to choose the type, range and configuration of data they want to see at the time of running the report.

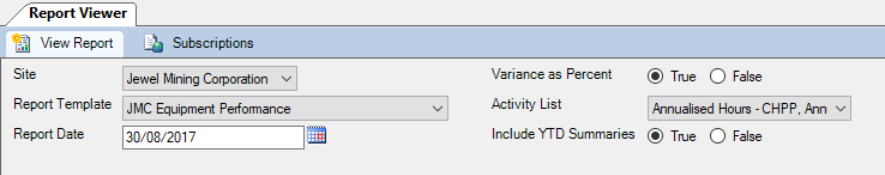

Parameters:
Search Bar:
You can search for reports in the search bar by inserting key words or numbers:
By selecting the drop-pin you can maximise your screen by hiding the reports list.
Report List:
The reports list can be expanded or collapsed based on your preference, right click on a folder:
Customise the folder list by selecting Startup View and select your preference.
Click on +/- to expend the node.
Click on View Subscription will provide the current subscriptions status.
The rearch reports tab provides the result of the search reports.
Data export
Report output can be exported in several different formats including relevant Microsoft
Office formats, PDF, standard image formats and varying web formats. Data can be
exported in CSV format as well to allow users to continue to analyse the data outside of
the application.
<div

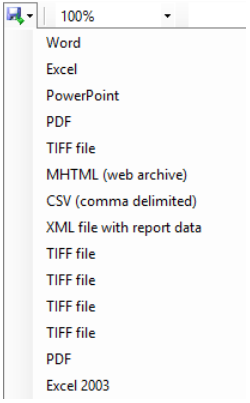

The list to the right provides all format can be exported.
